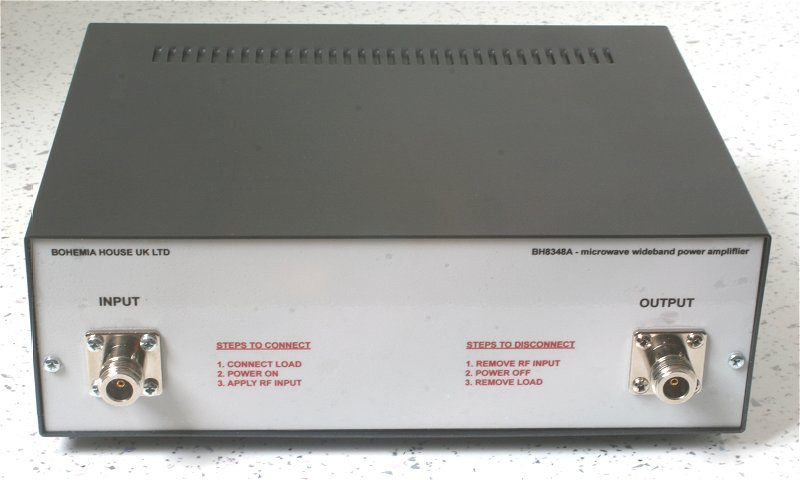

The BH8348A microwave wideband power amplifier delivers increased microwave power performance across a 2 MHz to 5200 MHz frequency range with +33 dBm of unleveled output power.

Frequency Range	2.0 MHz - 5.2 GHz
Maximum Output Power (at 0 dBm input)	2.0 MHz to 1.0 GHz:	≥ +30 dBm (typical)
	1.0 GHz to 4.0 GHz:	≥ +33 dBm
	4.0 GHz to 5.2 GHz:	≥ +32 dBm
Power Flatness (at 0 dBm input)	±4 dB (typical)
Minimum Small Signal Gain (at -15 dBm input)	2.0 MHz - 1.0 GHz:	≥33 dB (typical)
	1.0 GHz - 4.0 GHz:	≥35 dB
	4.0 GHz - 5.2 GHz:	≥37 dB
Noise Figure (typical)	2.0 MHz to 1 GHz:	< 8 dB
	1 GHz to 5.2 GHz:	< 6 dB
In & Out Connectors	N female
Size:	250 x 90 x 200 mm
Power Supply:	230V AC / 50 Hz
